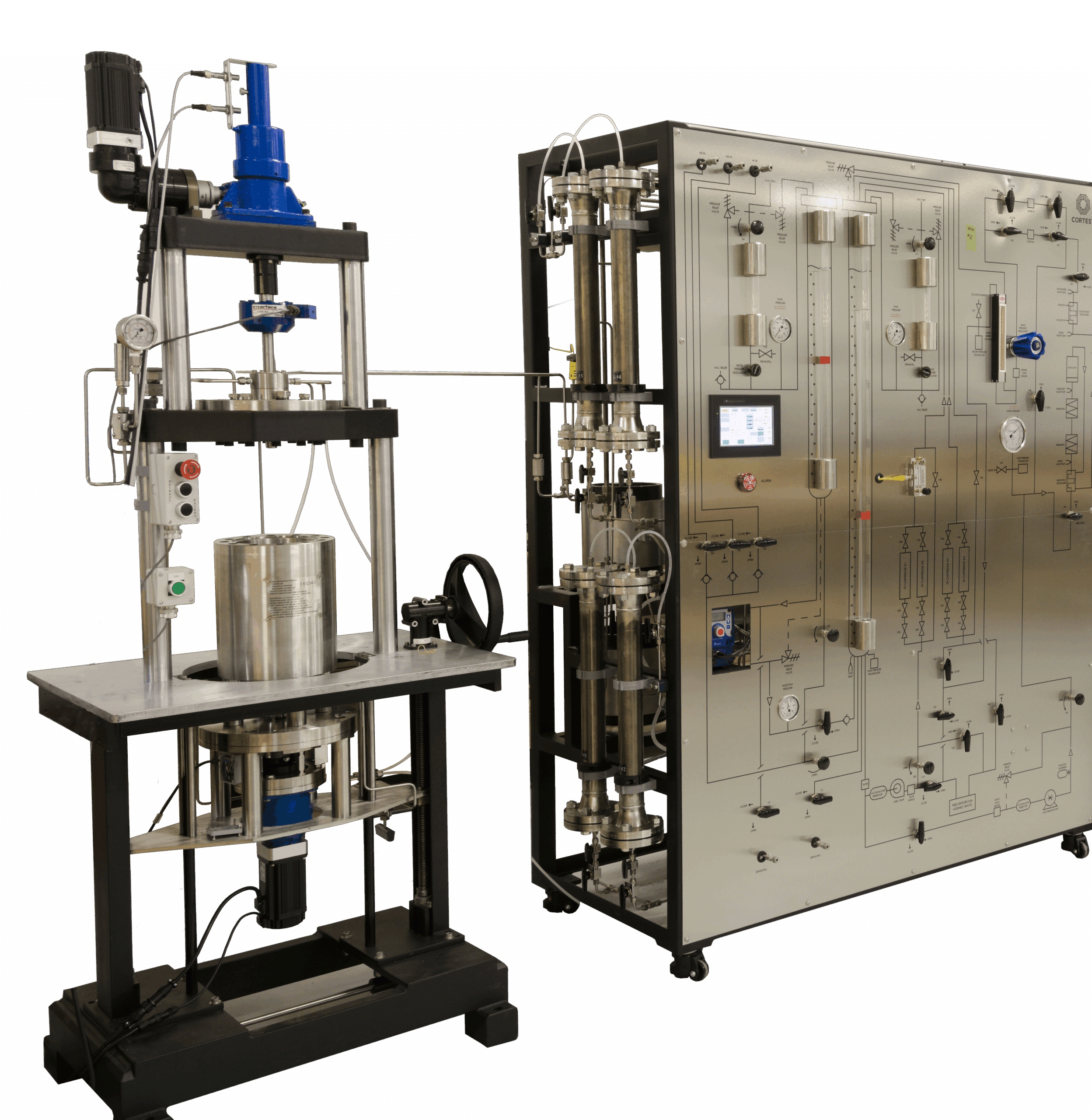

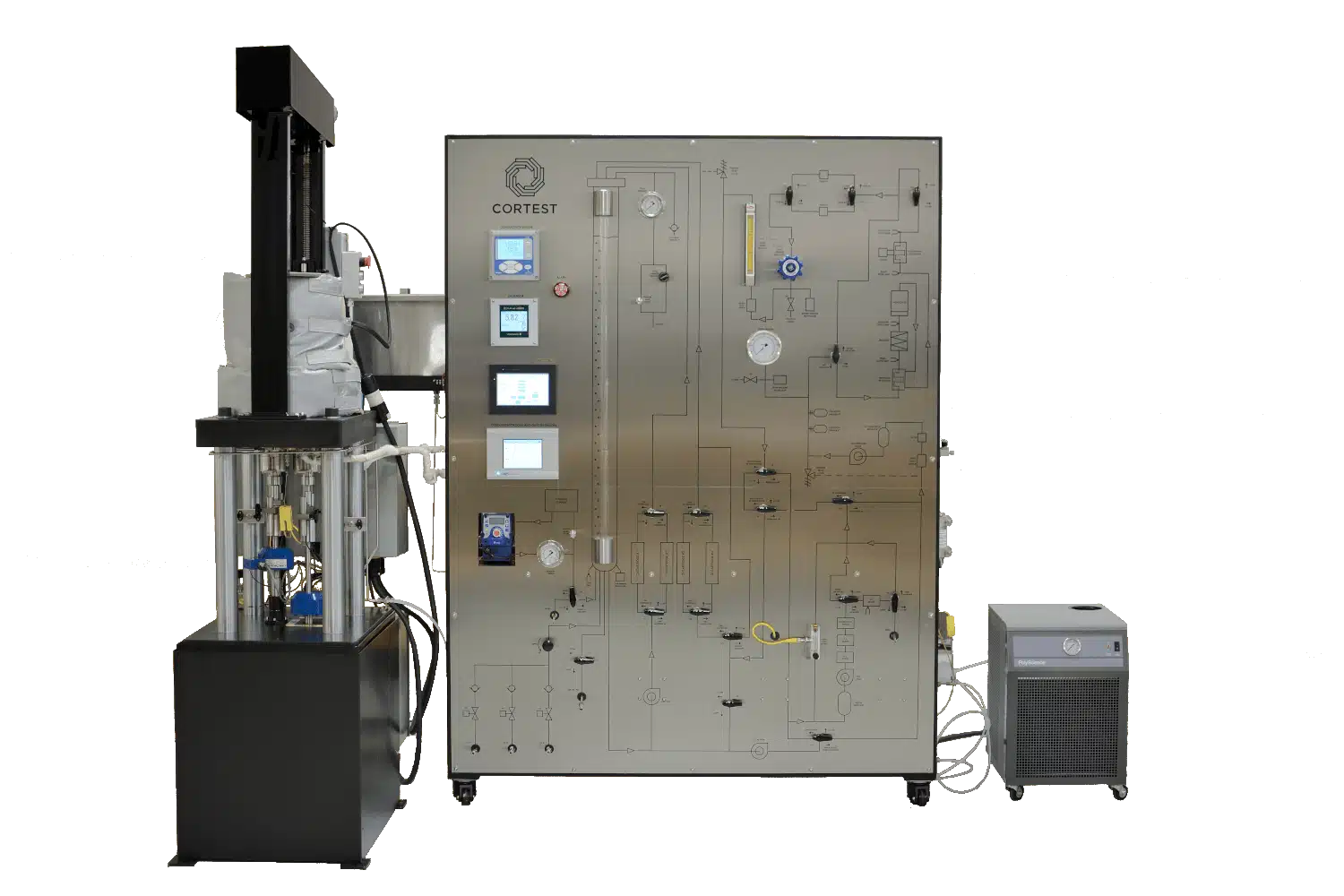

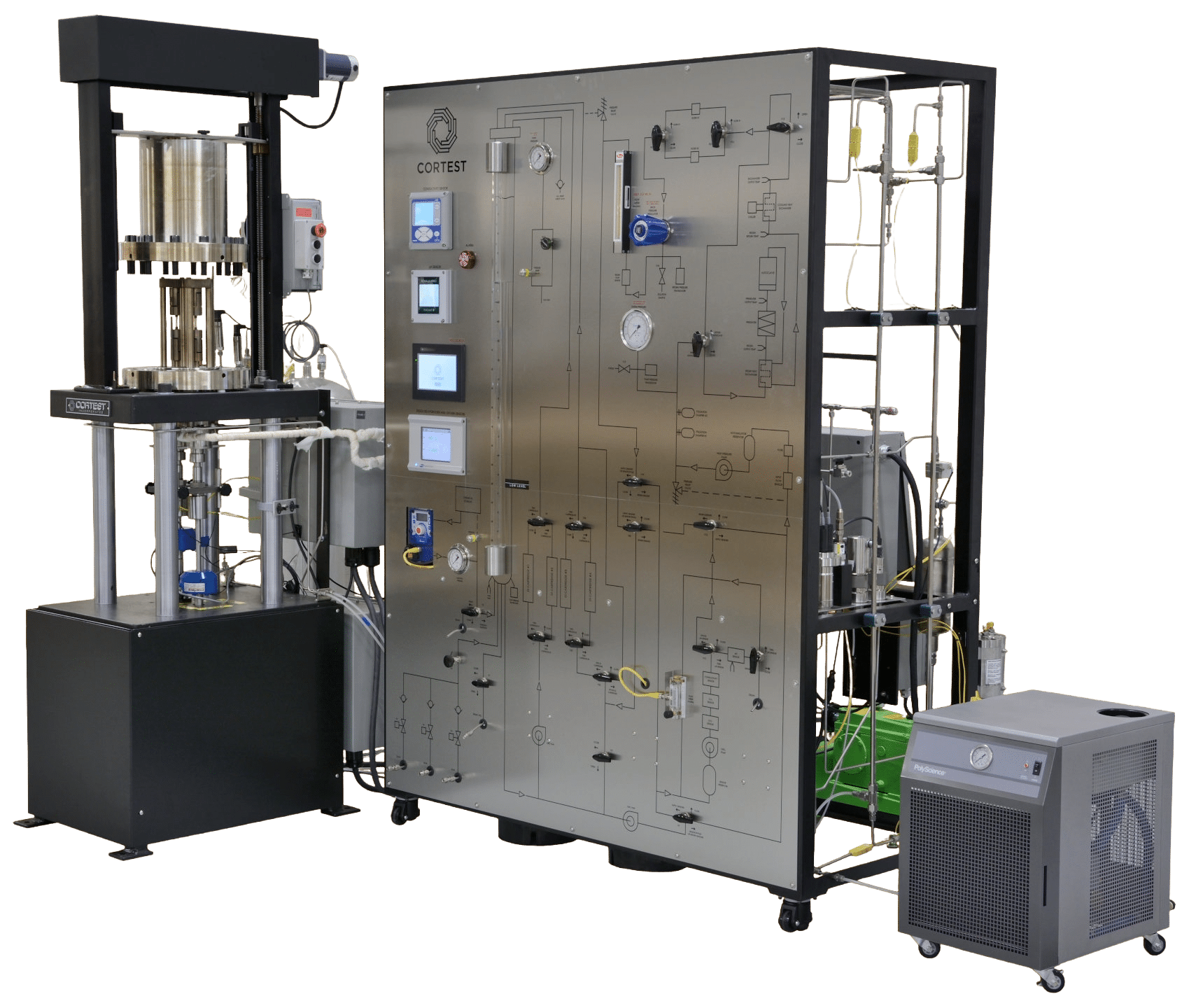

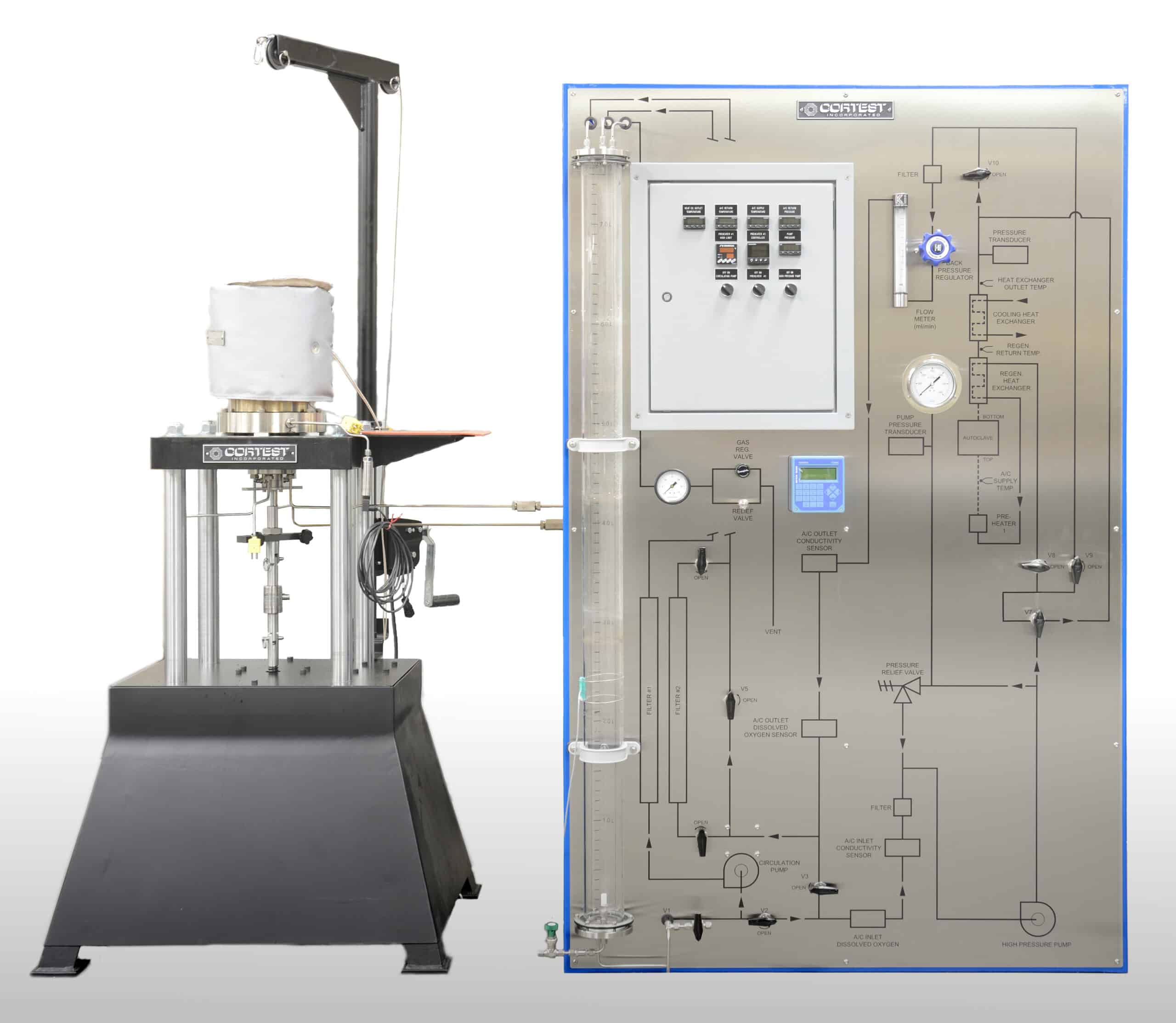

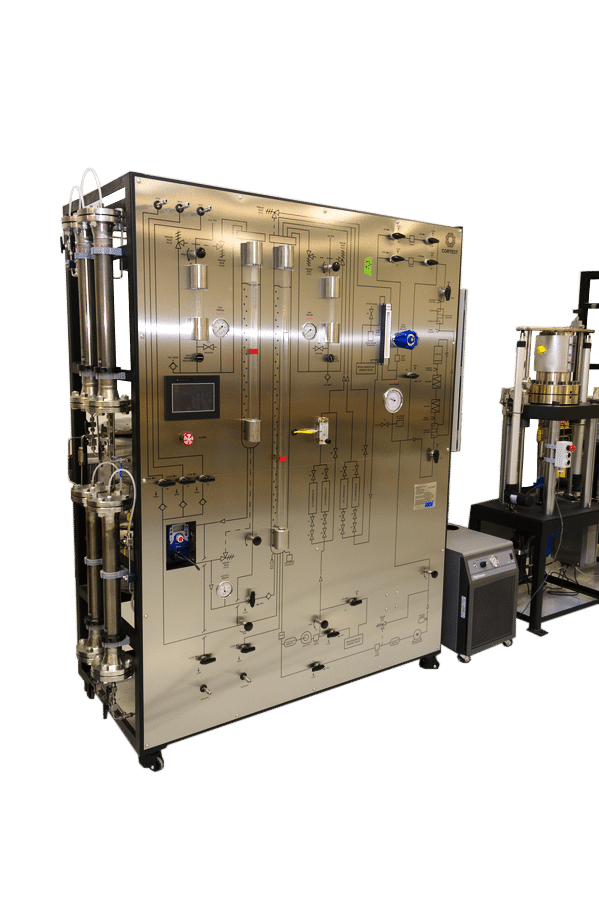

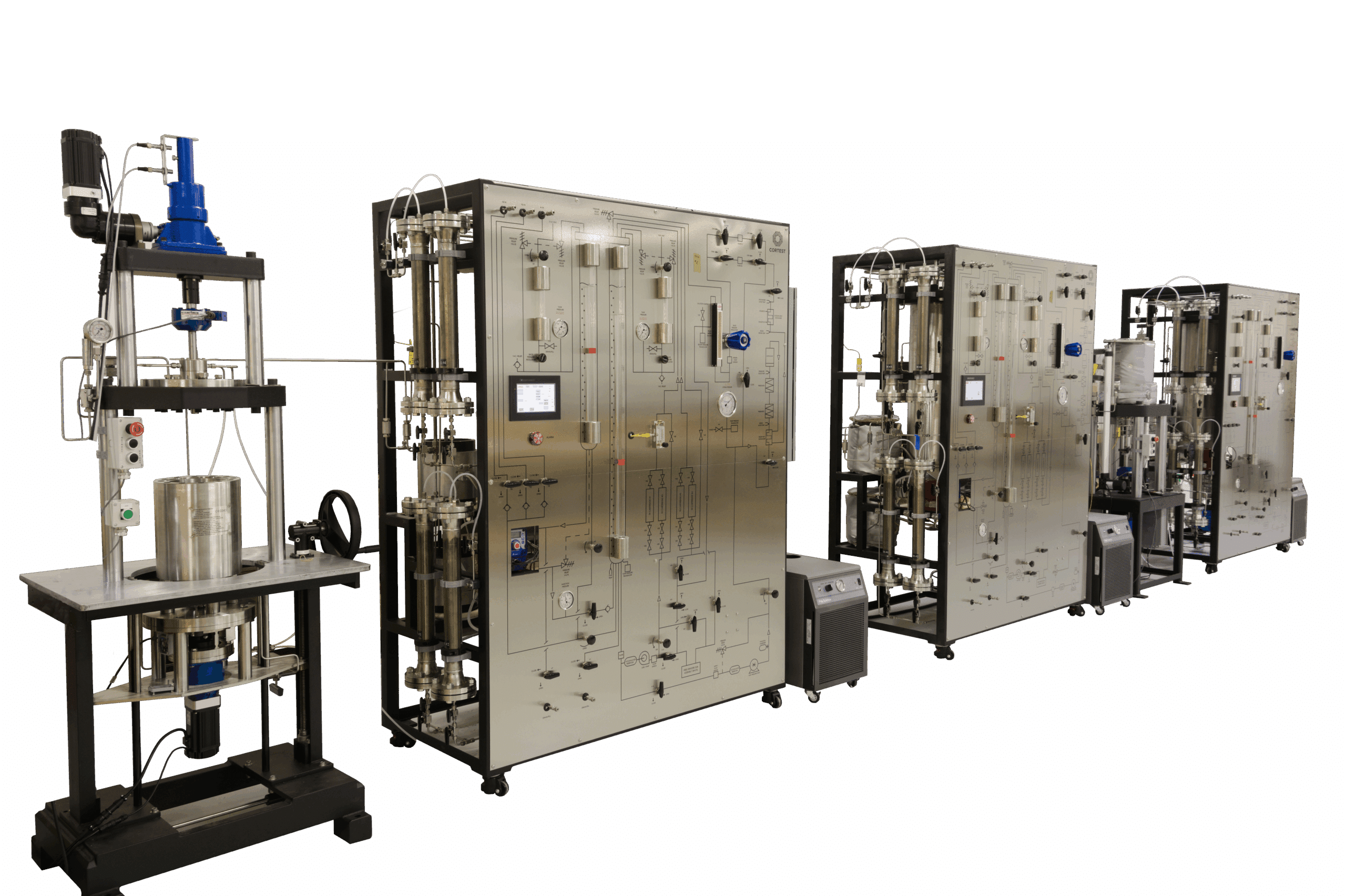

High Temperature, High Pressure (HPHT) Circulating Flow Loops are used to test materials in high purity water environments. These systems can create supercritical and multiphase conditions such as those seen in Pressurized Water Reactors (PWR) and Boiling Water Reactors (BWR). Our HPHT Circulating Flow Loops include a pumping system, heaters, heat exchangers, filters, thermocouples, and equipment for measuring water conditions including dissolved oxygen, dissolved hydrogen, pH, and conductivity.

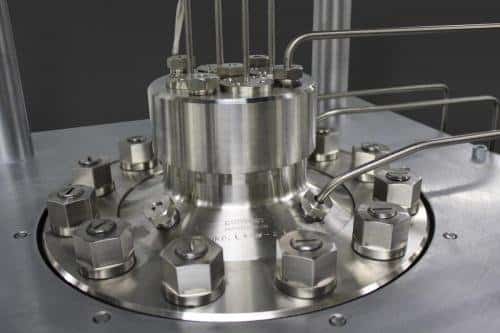

HPHT Circulating Flow Loops feed conditioned water to Autoclave systems including our Load Frames. Tensile tests, Slow Strain Rate tests (SSRT), Corrosion Fatigue Tests, and crack growth studies are performed using Cortest’s proprietary pull-through Autoclave. Control of the flow loop, autoclave, load frame, and crack growth measurements are integrated into a single computer and control module.
WATER CHEMISTRY MONITORING
CONDUCTIVITY, DO, pH, DH
(Custom Configurable)
PRESSURES UP TO
35 MPa
(5,076 PSI)
TEMPERATURES UP TO
600°C
(1112°F)
Materials of Construction
Features
-Cortest Proprietary System Control
Test Loop Control Enclosure with the Following Displays
Autoclave Return and High Pressure Pump Pressure Display
Autoclave Supply/Return and Heat Exchanger Temperature Display
Over Temperature and Variable Pressure Safety and Slarms
Default Data Acquisition System Records the Following Data
All Test Loop Sensors
Test Loop Thermocouples
Test Loop Pressure Transducers
Test Loop Flow Rate
Test Duration
