Flow Loop Systems

Flow Loop Systems for Pipeline and Corrosion Testing

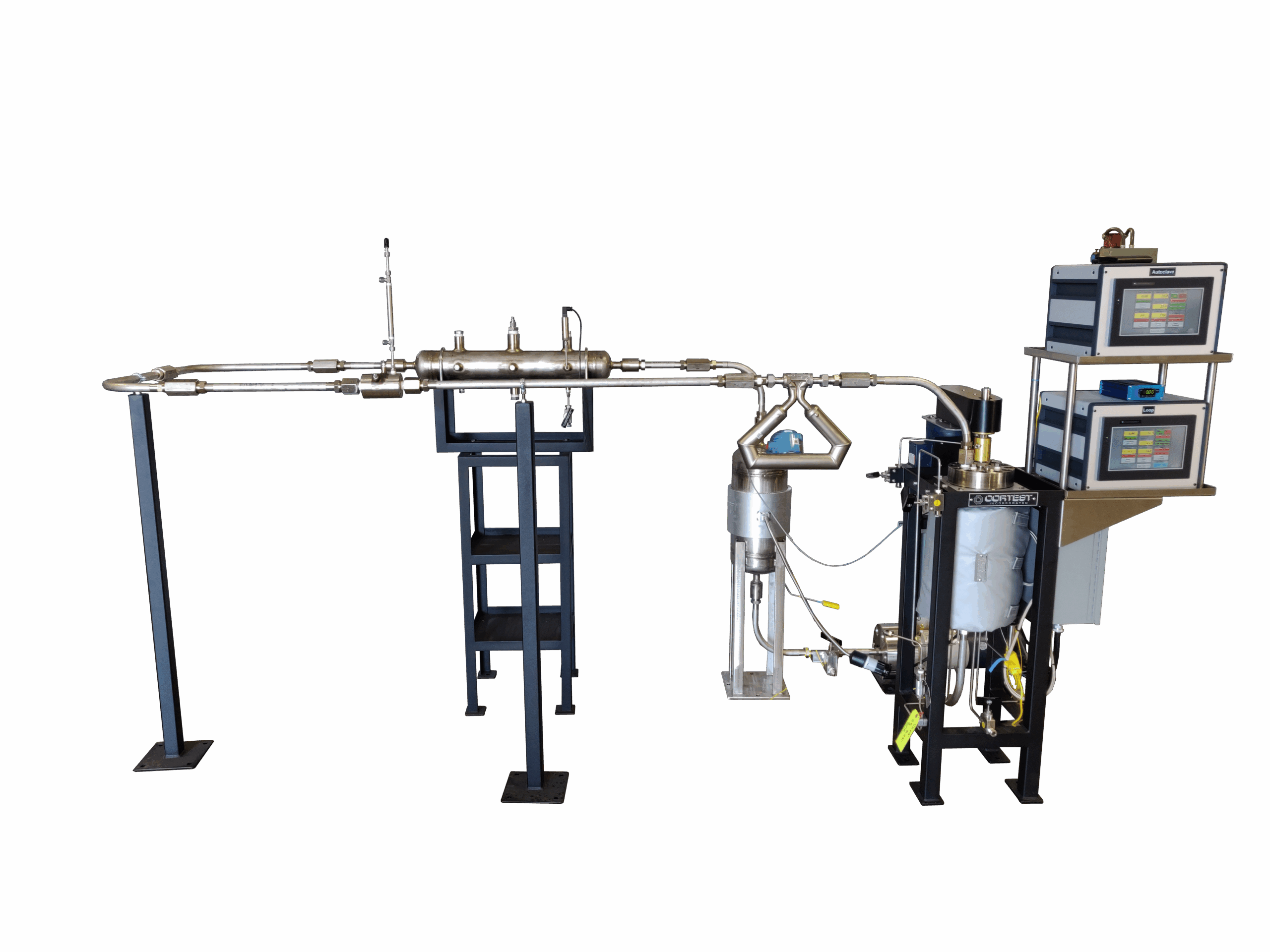

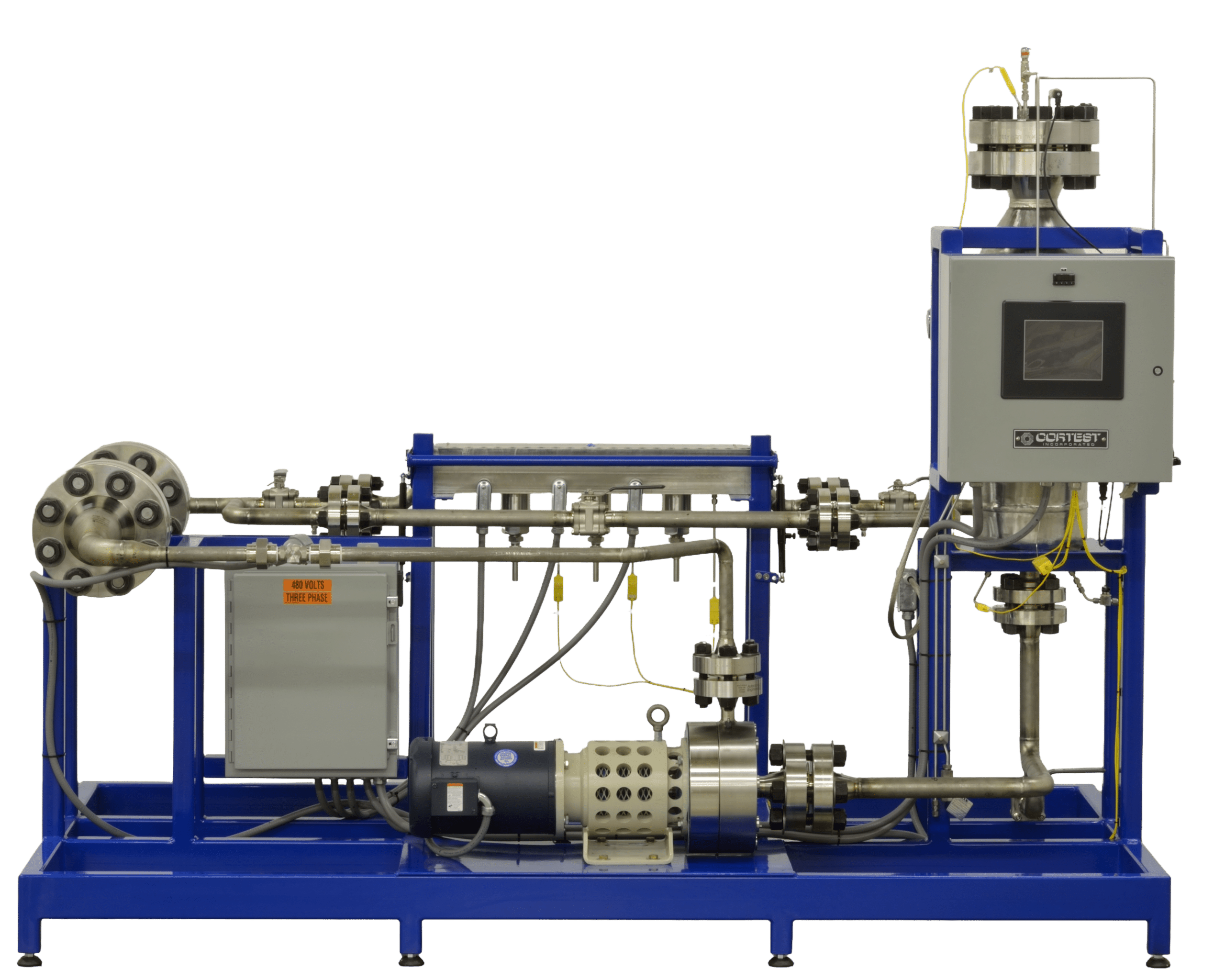

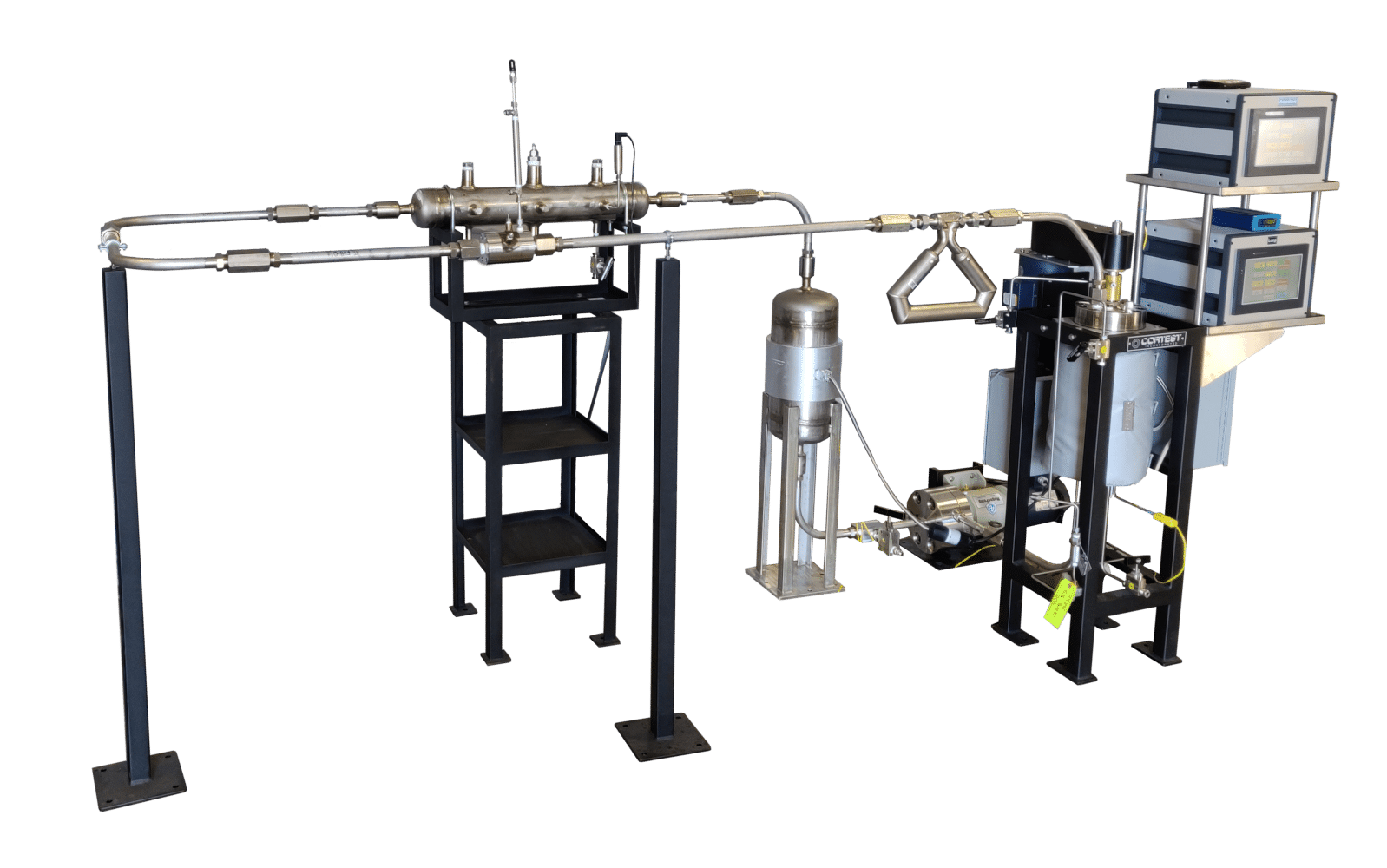

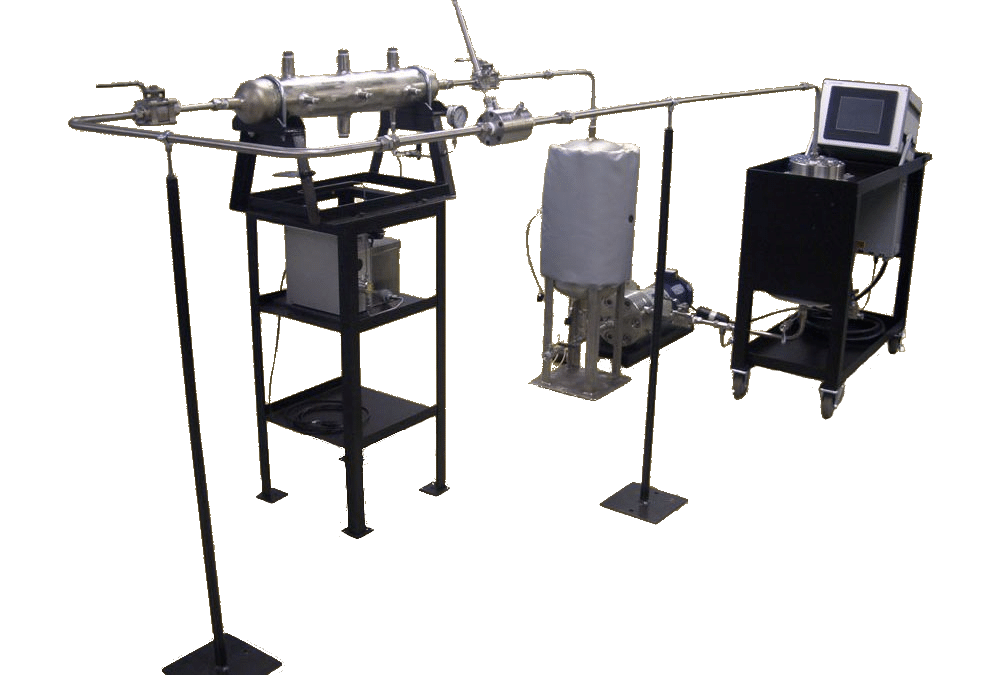

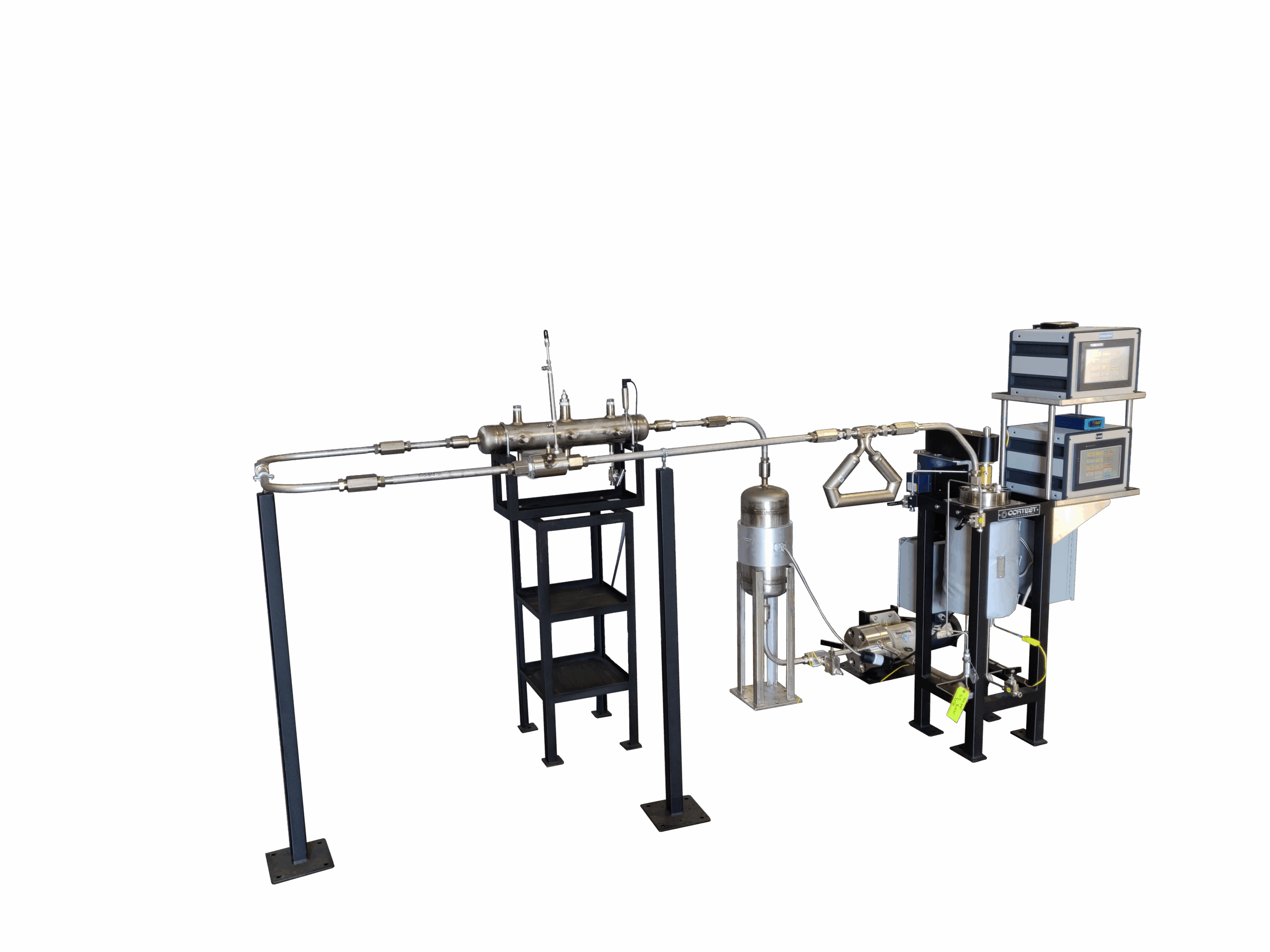

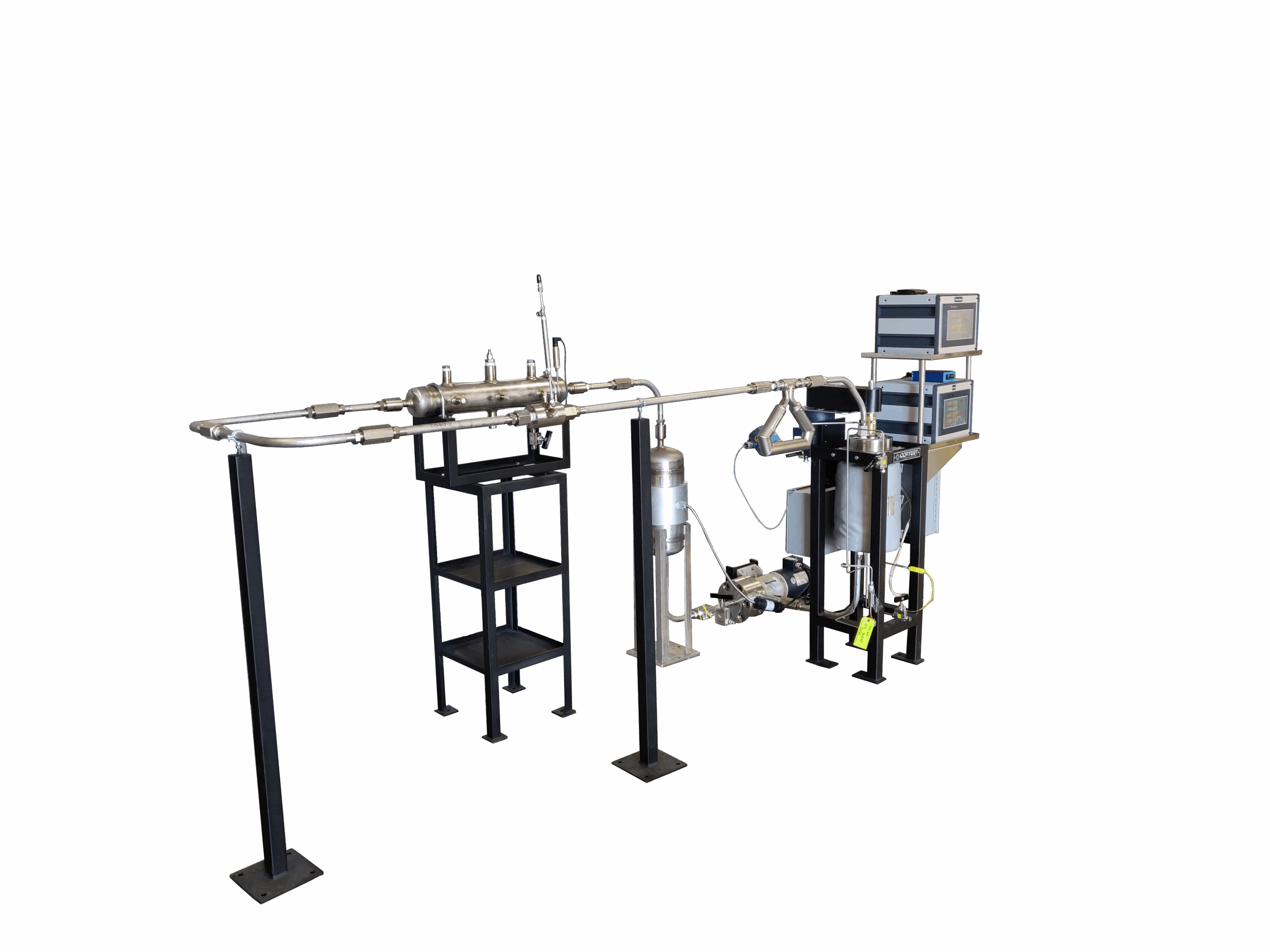

Cortest Flow Loop Systems are used to simulate flow conditions inside pipelines and other high flow environments. A wide range of applications can be simulated, such as: Single Phase Liquid Flow, Single Phase Gas Flow, Multiphase (Liquid/Gas) Flow, Laminar Flow, and Various Hydrodynamic Conditions including Corrosion Flow, Slug Flow, Annular Flow, and Stratified Flow. Flow Loops are used to measure the effectiveness of Corrosion Inhibitors and Drag Reducers in various environments and flow regimes. Analysis capabilities include Laser Doppler, Particle Image Velocimetry, Particle Shadow Sizing, Tomography, Sheer Stress measurements, and others.

Customers can specify operating parameters such as flow rate, temperature, pressure, single or multiphase, piping diameter, and a selection of corrosion probes and sensors to customize the system for their specific requirements.

Get A Quote

Brochure

Product Details

Specifications

MEDIA TYPE

LIQUID, GAS, OR MULTIPHASE

LIQUID FLOW RATES UP TO

10 m/s

GAS FLOW RATES UP TO

20 m/s

System Features

Liquid Flow Loop Features

Flow Rates Up to: 10 m/s
Operating Temperatures Up to: 300°C
Operating Pressures Up: 30 MPa
316 Stainless Steel or Hastelloy C-276 Construction
Variable Speed Pumps

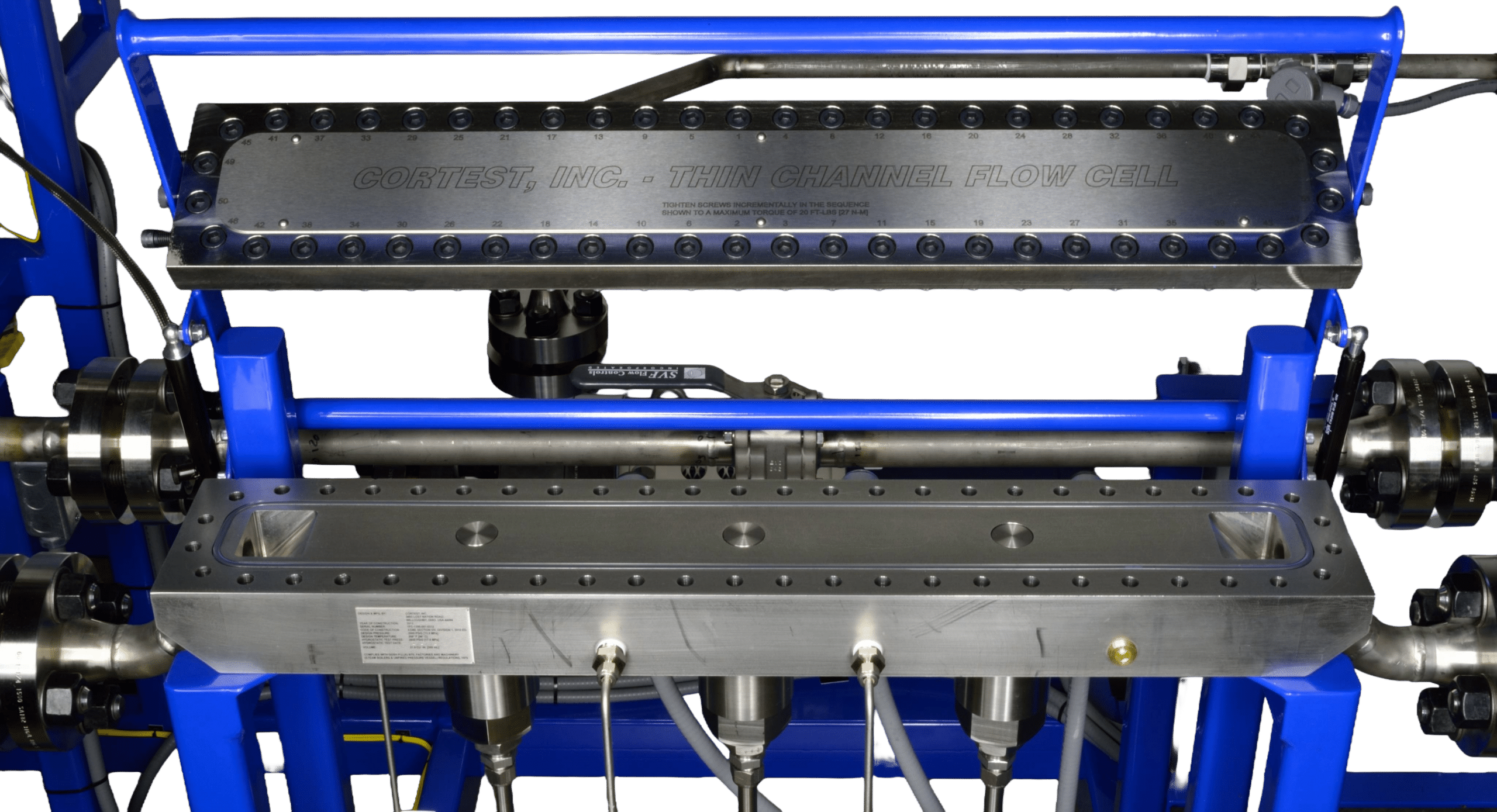

In-Line Test Spool Sections for Insertion of Corrosion Monitoring Probes and/or Coupons
Removable Test Sections for Customer Supplied Material Test Studies

Gas Flow Loop Features

Flow Rates Up to: 20 m/s
Operating Temperatures Up to: 150°C
Operating Pressures Up: 10 MPa
316 Stainless Steel or Hastelloy C-276 Construction
Variable Speed Gas Blowers/Pumps
In-Line Test Spool Sections for Insertion of Corrosion Monitoring Probes and/or Coupons
Removable Test Sections for Customer Supplied Material Test Studies

Multiphase Flow Loop Features

Liquid Flow Rates Up to: 10 m/s
Gas Flow Rates Up to: 20 m/s
Operating Temperatures Up to: 150°C
Operating Pressures Up: 10 MPa
316 Stainless Steel or Hastelloy C-276 Construction
Variable Speed Gas Blowers/Pumps
In-Line Test Spool Sections for Insertion of Corrosion Monitoring Probes and/or Coupons
Removable Test Sections for Customer Supplied Material test Studies
Fully Inclinable Test Section to Simulate Different Flow Regimes

Controls

Programmable Logic Controller (PLC) Based Control Systems
Temperature and Variable Speed Flow Control
Analog Outputs for Temperature and Pressure Recording
Over Temperature and Variable Pressure Safety and Alarms

Default Data Acquisition System Records the Following Data:

Solution Temperature(s)
Heater Band Temperature(s)
System Pressure(s)
Flow Rate
Corrosion Rate
Test Duration

Typical Applications

Corrosion Inhibitor Evaluation
Electrochemical Studies
New Product Development/Testing
Flow Studies
Field Simulations
