Friction and Wear Testing

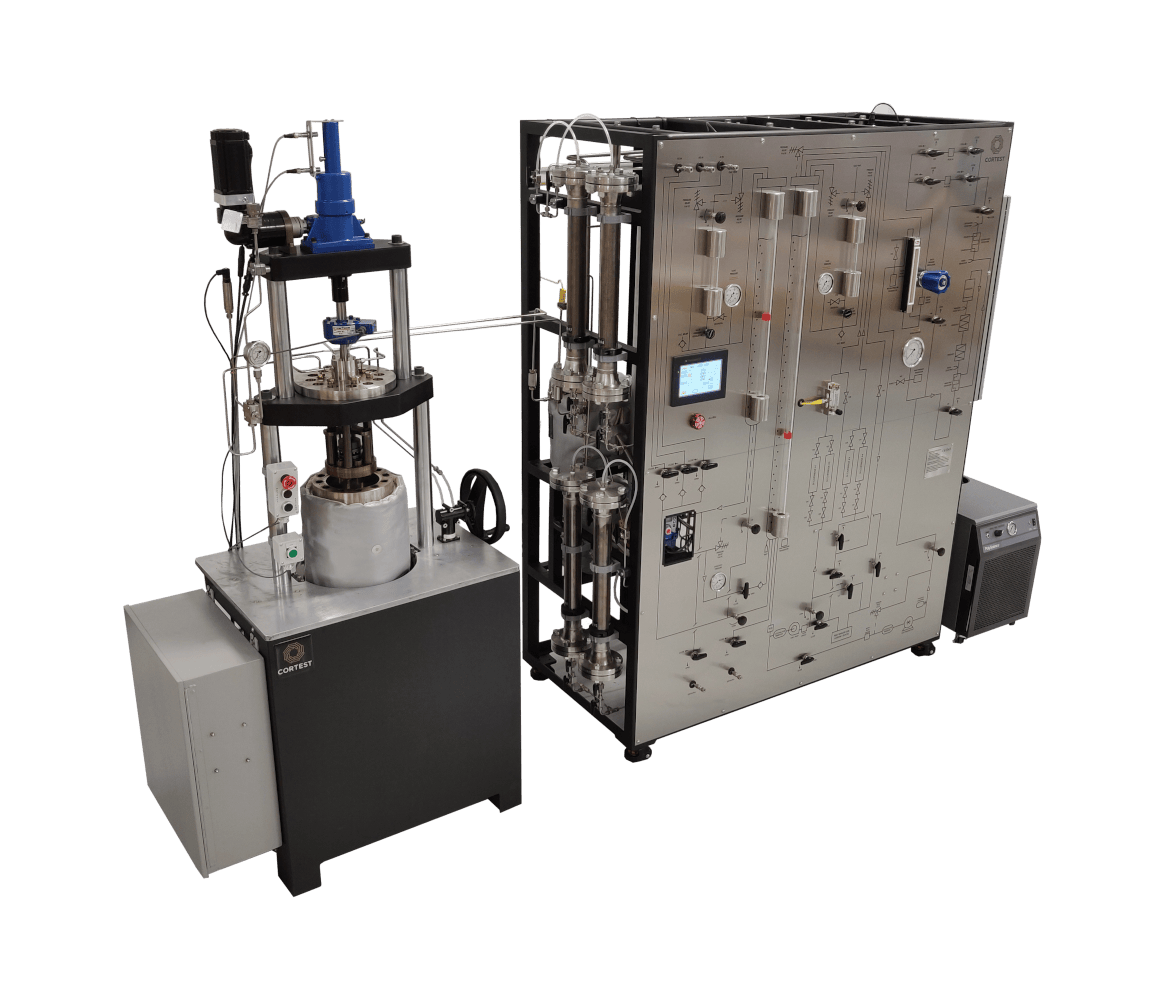

Custom Friction, Wear, and Galling Systems for material testing in High Temperature, High Pressure (HPHT) Autoclave Environments.

Cortest has partnered with laboratories around the world to commission equipment for use with ASTM G77, ASTM G98, ASTM G99, ASTM G196, and custom test specifications. While many of these test specifications are designed for open air testing, we are able to adapt these tests to work inside Autoclave Environments and have even paired them with our Circulating Flow Loops. Our software controls both linear and rotary motion and can collect data from load cells, torque transducers, and linear displacement transducers to log, display, and analyze test data in real time.

More Info

  • TEST METHODS

    ASTM G77     ASTM G98
    ASTM G99     ASTM G196
    CUSTOM

    TEST DATA

    LINEAR DISPLACEMENT
    LOAD
    TORQUE
    PRESSURE
    TEMPERATURE
    CUSTOM MOTION PROFILES

  • Materials of Construction

       -Wetted Components (Vessels, Pull Rods, and Grips):

       -Inconel 718, Hastelloy C-276, 316 Stainless Steel, A286 Stainless              Steel

       -Non-Wetted Components (External Load Components):

       -17-4 PH Stainless Steel

    Sealing

       -Metal to Metal, PTFE, FFKM, PEEK, EPDM

    Designed to work with existing Cortest equipment including

       –Autoclave Systems

       –Stirrers

       –HPHT Circulating Loops

  • -PC Controlled Data Acquisition System

    -Compact Tabletop Design

    -Keyboard/Mouse Interface

    -23” Monitor

    -LabVIEW Based Software Tests

       -Custom Test Profiles
